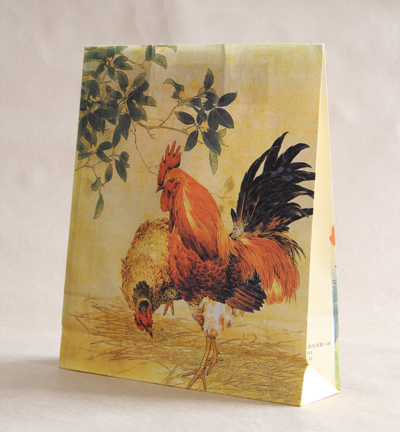

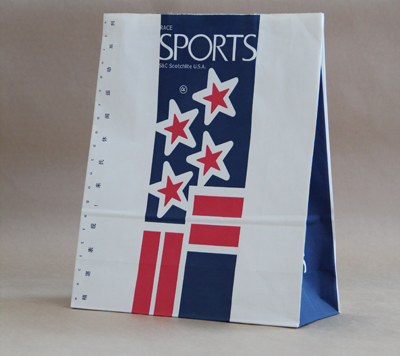

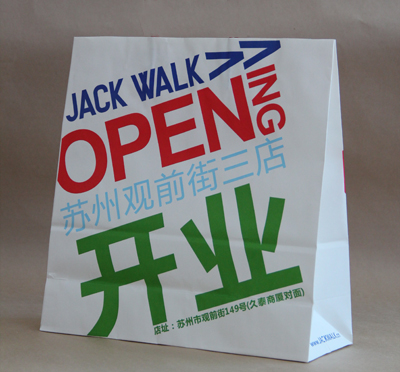

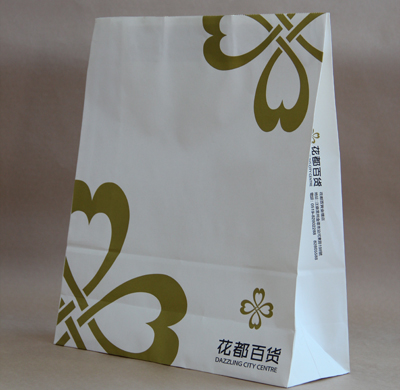

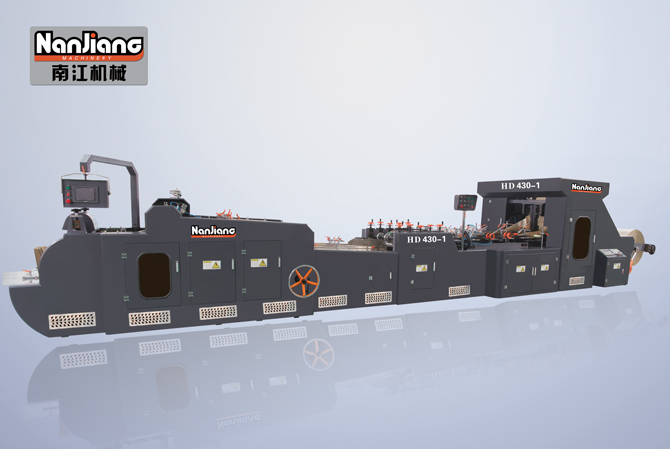

This machine is built to make shopping bags or food bags with paper rolls, paper can be pre-printed. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for shopping, loading foods, sugar, flour and so on.
|
Model
|
HD430-1
|
|
Paper Roll Width
|
500-1190mm
|
|
Tube Length
|
270-650mm
|
|
Bag Width
|
160-430mm
|
|
Bottom Width
|
80-150mm
|
|
Paper Weight
|
70-170g/m2
|
|
Max. Paper Roll Diameter
|
ф1200mm
|
|
Material Core Diameter
|
ф76mm
|
|
Max. Production Speed
|
150bags/min
|
|
Total Power
|
13Kw
|
|
Machine Weight
|
10000kg
|
|
Machine dimensions
|
12500*2000*2000mm
|
Video
|
