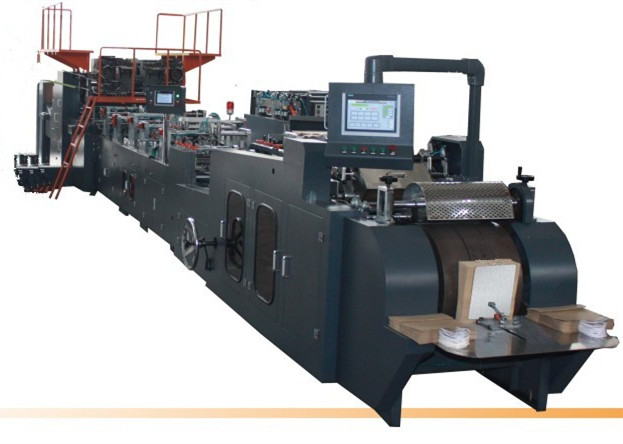

HD-450 machine is sheet fed and with top fold,which is developed based on WFD450-1 machine.It adopts auto paper feeding system to keep sheet paper feeding continuously.
It uses printed sheet paper as raw materials and makes the paper bag with top fold,as well as the double holes punching at one time.So that it can save labor cost to achieve higher working efficiency. This machine adopts touch screen and PLC control system with higher precision and speed.It is the best production line for making shopping bags, gift bags, super market bags, food bags, etc.
It is with creasing function and adopts hot melt glue system and can make many sizes of paper bags. Suitable paper: kraft paper, white cardboard, art paper, laminated paper.
1.1 Machine details
| Paper-fed type |
Producing speed |
Total power |
Weight |
Dimention |
| |
(bags/min) |
(kw) |
(ton) |
(LxWxH mm) |
| Sheet fed |
40~60 |
15 |
12 |
13500x1800x1950 |
1.2 Paper details
| Paper Gram Weight |
Paper Size(mm) |
Paper Size(mm) |
| (g/㎡) |
Min(LxW,mm) |
Max(LxW,mm) |
| 120~250 |
545x350 |
1185x600 |
1.3 Bag details
| Bag tube length |
Bag width |
Bag bottom width |
| (mm) |
(mm) |
(mm) |
| 350~600 |
220~450 |
80~170 |
